Sheet Extrusion Systems HVTSE co-rotating twin screw extruder

In January 2010, PTi entered a 10 Year Strategic Business Alliance (SBA) with Italian equipment maker Luigi Bandera to offer dryer-less PET/PLA Sheet Extrusion Systems. Due to their hygroscopic nature, PET and PLA materials require pre-drying prior to being extruded. Historically, that meant processors had to invest in large drying systems that consume not only time, but also high amounts of energy in the form of electricity or natural gas. The patented Bandera technology referred to as HVTSE (High Vacuum Twin Screw Extrusion) employs a single atmospheric and dual high vacuum vent system with a co-rotating twin screw extruder. This unique approach, allows moisture and other volatiles to be removed as part of the extrusion process. In the case of recycled PET, the need for recrystalization of the material is also eliminated. The energy savings from the elimination of these drying and crystallization steps can run upwards of 30-35% over the conventional method.The HVTSE Technology is available exclusively from PTi throughout all of NorthAmerica. If you have further questions please feel free to contact us today at 630-585-5800 or 800-547-6493

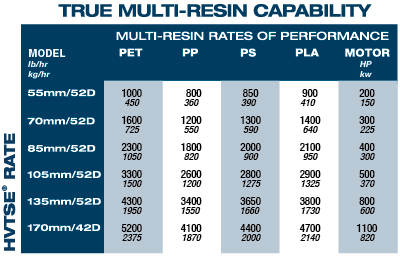

Sheet Extrusion System Multi-Resin Rates of Performance
