thin gauge sheet production systems

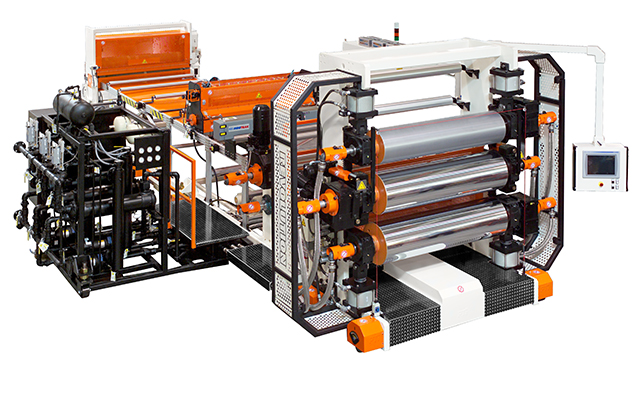

TRIDENT® Model 4500 (4.5"/115mm) Air Cooled Extruder with 300HP AC Drive; TRIDENT® Model 3500 (3.5"/90mm) Air Cooled Extruder with 150HP AC Drive; REVOLUTION® Model V661518 Vertical Sheet System with Motorized Roll Gap and Roll Stand Height Positioning

PET Packaging - Lids

PTi provides a variety of thin gauge sheet production systems including those specifically configured for PET beverage lid and dome production.

Hybrid REVOLUTION® Model
R601836 3-Roll System

       Telescoping roll stand carriage
       for opening and closing the
      auxiliary cooling station (PTi
     Patent No. 7,165,962)

PROCESS SUMMARY

Resins	APET
Gauge	0.008 - 0.050” (0.20- 1.27 mm)
Width	60" (1,525 mm)
Rate	4000+lbs/hr (1800+ kg/hr)

FEATURES INCLUDE

Fully integrated TITAN® Plus control system
AUTORAMP™ line control and coordination
Pivoting main extruder base for ease of maintenance
Thread-up leader winder
Vertical roll stand height positioning system
And more!

PET Packaging - Lids

Telescoping roll stand carriage for opening and closing the auxiliary cooling station (PTi Patent No. 7,165,962)

Telescoping roll stand carriage
for opening and closing the
auxiliary cooling station (PTi
Patent No. 7,165,962)
