A Compact Line with an Expansive Scope

Capable of producing up to 2000 pph, this month's featured line is ideal for those looking to integrate a small-scale extrusion system into their operations.

The SUPER-G® HighSPEED™ SGHS3000 features make it suitable for compact spaces with low output requirements, in the areas of PP, PS and PET applications.

  • Specifications:
  • • SUPER-G® HighSPEED™ Model SGHS3000-36D high speed extruder
  • • Maguire 4 Component Gravimetric Blender
  • • Witte 90-371 Gear Pump
  • • Nordson EDI 42" Die H40; 42" (1,065mm) sheet die with 0.010" - 0.050" (0.25 - 1.27 mm) lip opening

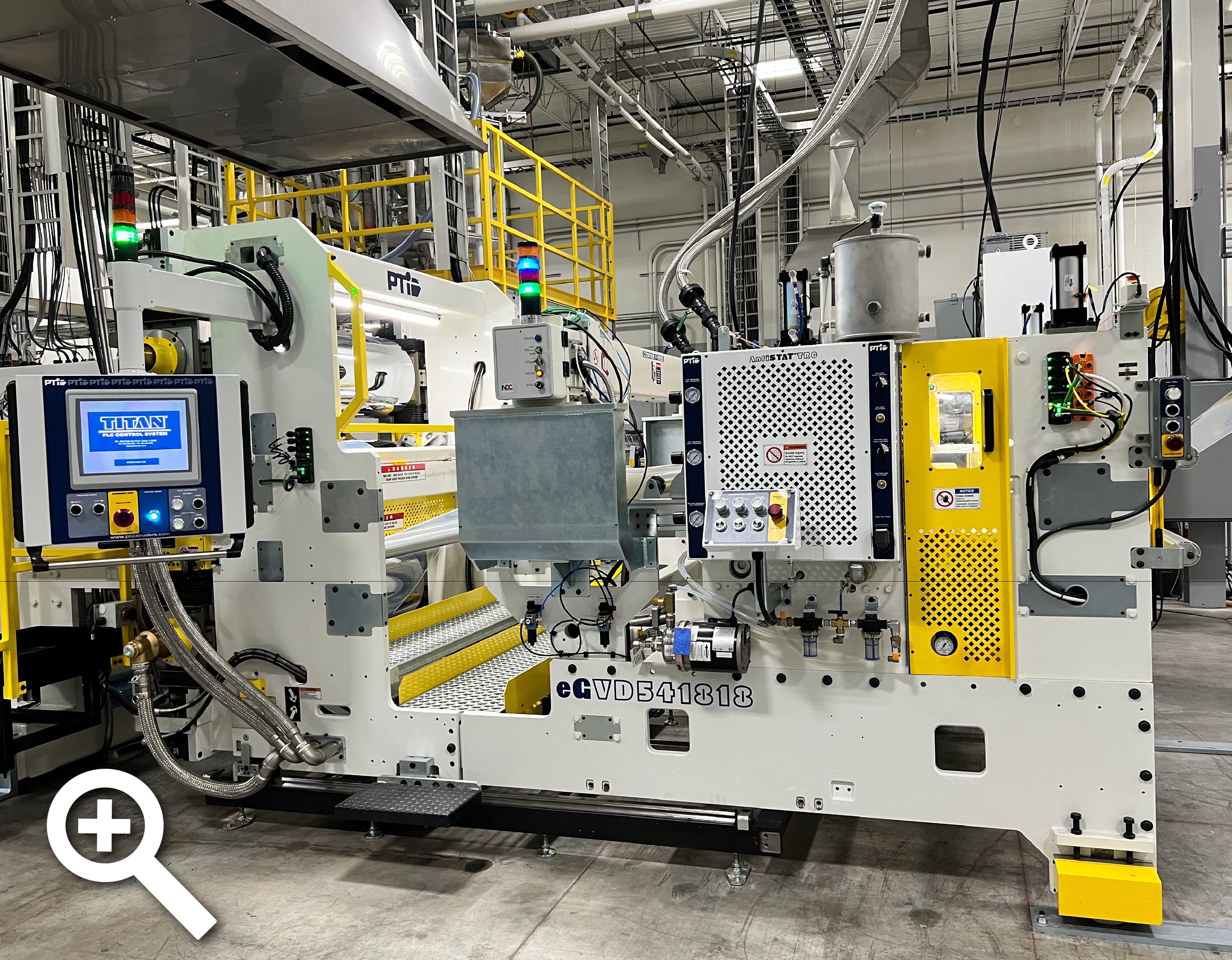

  • • G-SERIES® Model eGVD541818 vertical downstack; cooling and sheet polishing unit with 54" (1,370mm) roll face
  • • AntiSTAT™ TRC-54 transfer roll coater; Anti-static coater/dryer for coating top, bottom or both sides
  • • A66100 Sheet Accumulator; 66" (1,675mm) Wide 100' Volume
  • • ACW6640/2 Cantilevered Winder; 66"(1,675mm) Wide Differential, 2-up Max. 40"(1,010mm) Dia. Buildup
  • • Helios Slitter Station 3 Blade Rotary with position control
  • • TRIA XR5030 Edge Trim Recovery System
  • • TITAN® PLC Control System

See it in Action!

This configuration currently resides in our Technology Development Center (TDC) as a full production extrusion system— from the dosing system thru roll winding. See its processing capabilities for yourself using your own supplied resin by scheduling a trial. For details, contact your sales representative today.

 

ACT NOW! Take Advantage of Low Pricing Incentives! Significant $avings on current GENESIS™ Program inventory! From now until May 31, 2025...

Take advantage of off-the-top discounts from 10-15%, equating to $100,000s off complete systems configurations. These savings are substantial when compared to custom design-to-build projects, that often require the inclusion of engineered services, material procurement and build times.



1 Price incentives apply to current GENESIS™ Program inventory only - subject to prior sale, check with factory for availability. 2 Price incentives apply to current TDC (Technology Development Center) System Equipment (Demo lines 1 & 2) - subject to prior sale, check with factory for availability.

See us at these upcoming trade shows:
