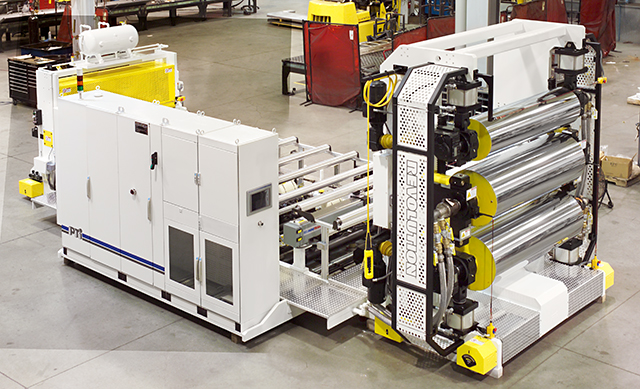

Compact Hybrid REVOLUTION® Model VD701836 Sheet Take-Off System in retracted open position for access to rearward side of the primary roll stand PTi Patent No.7,165,962)

Roll Stands - Vertical

PTi's vertical roll stand designs are ideal for a variety of sheet applications. It represents a versatile design that is well suited for most sheet applications including thin thru thick gauges and medium thru wide sheet widths. This design can also accommodate a variety of melt strength conditions.

Compact vertical three roll system for inline thermoforming.

Full length vertical three roll system for roll stock production

Catwalks, vertical nip height positioning and integral chassis for ease of installation.

Compact Hybrid REVOLUTION® Model VD701836 Sheet Take-Off System in retracted open position for access to rearward side of the primary roll stand(PTi Patent No. 7,165,962 B2)

Back side of a full length sheet take-off system featuring a telescoping conveyor shown fully extended in the running position.This feature permits system retraction with pull roll unit remaining fixed such that downstream devices can be installed in a stationary position.

System configured for CE compliance and features a rear positioned lamination capability station for the production of barrier laminated sheet materials.
