The GENESIS^™ Program takes obtaining the essentials one step further with the inclusion of the uCAMS^™ (Universal Cleaning Assembly and Maintenance System). Engineered with the purpose of servicing cast film and sheet dies efficiently and safely, this device provides a means for inspection and maintenance by a single technician. With ease of use, efficiency, and versatility, the uCAMS^™ die splitting cart is the foundation of any off-line die maintenance program.

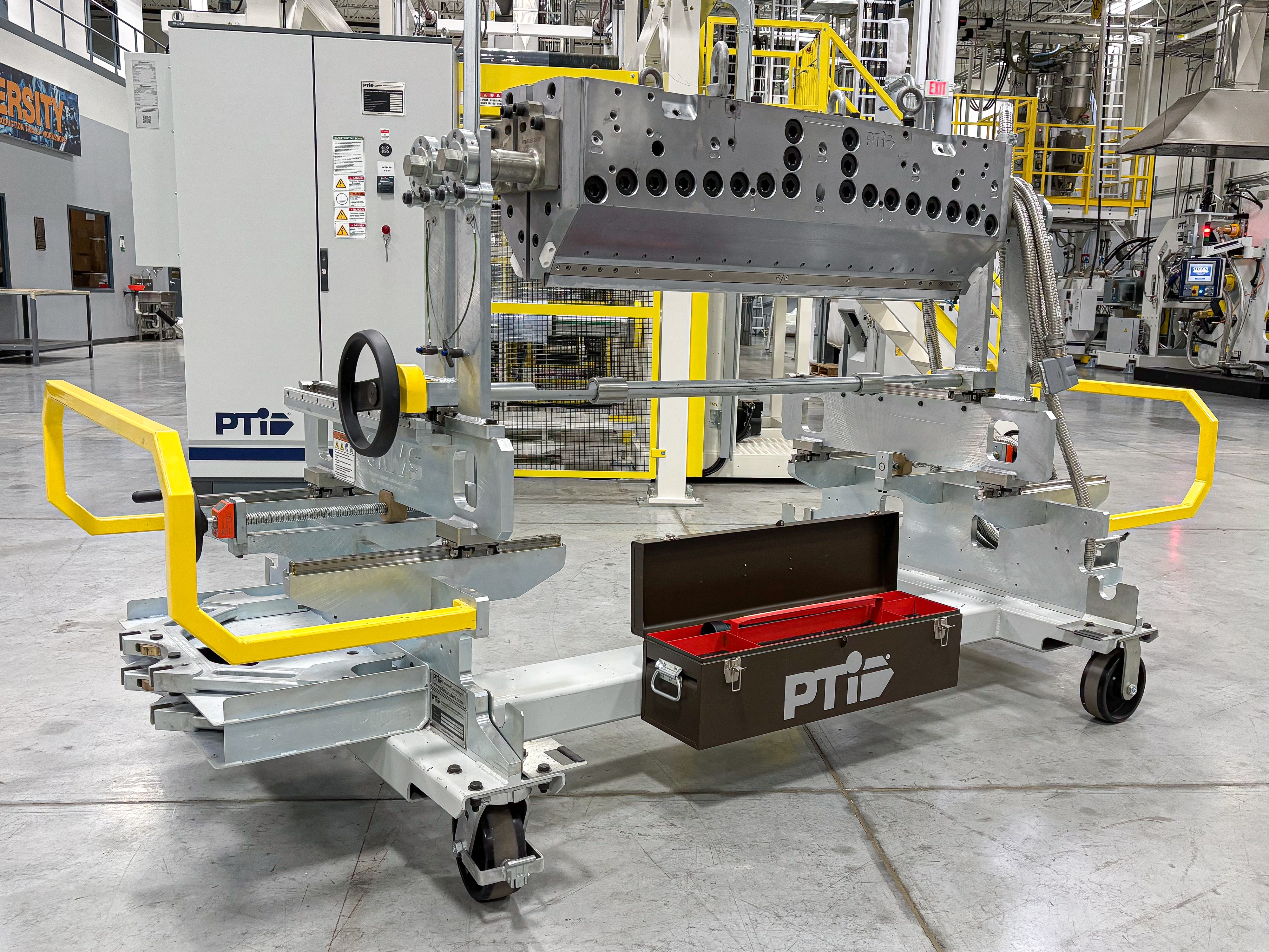

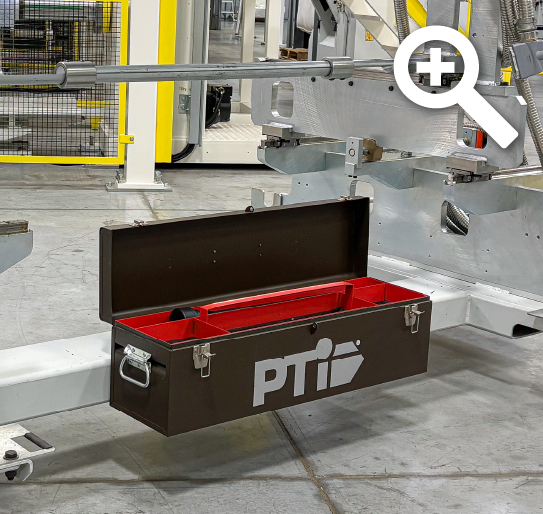

Large toolbox securely stores service supplies, trunnions, and tools.

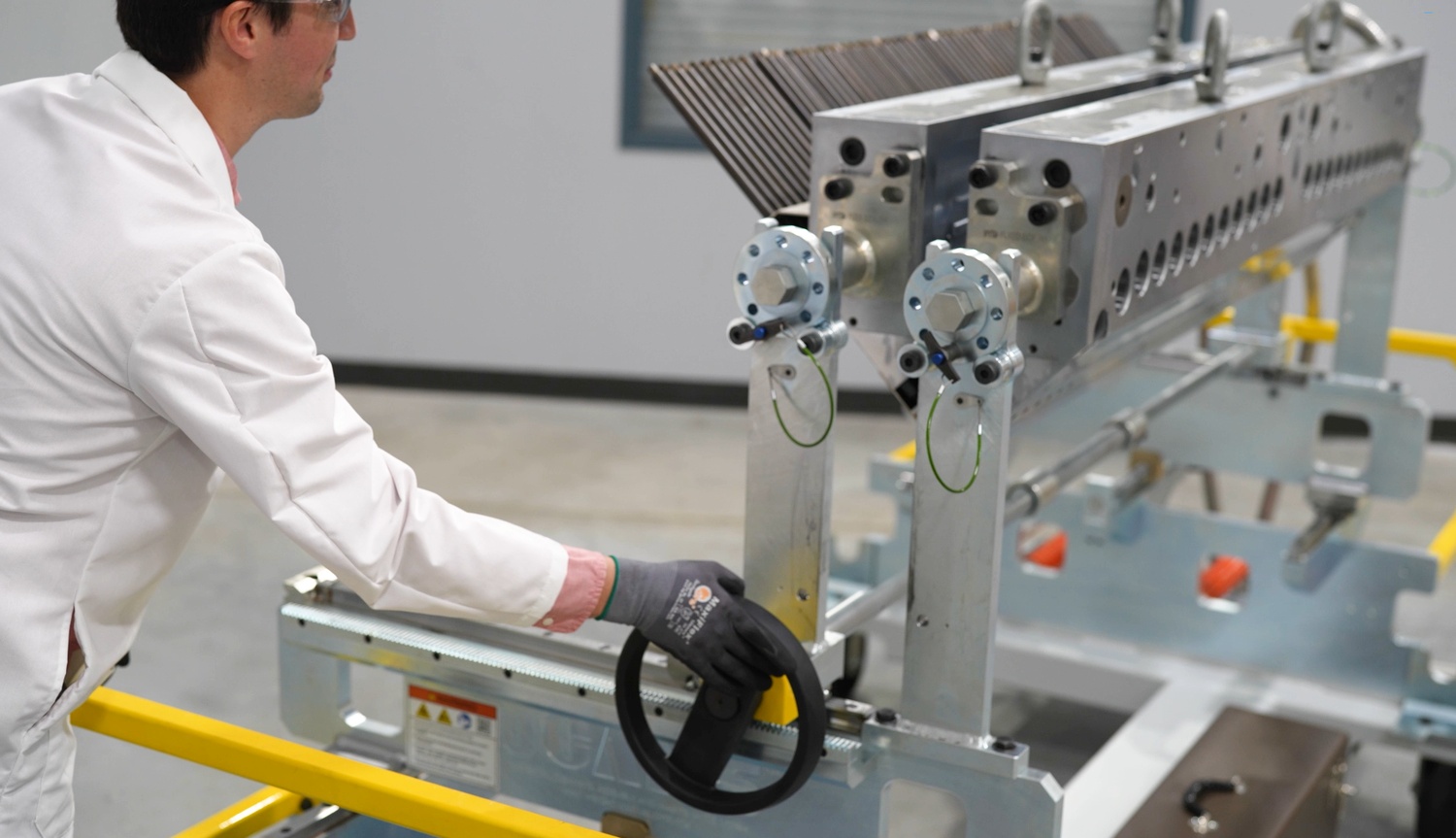

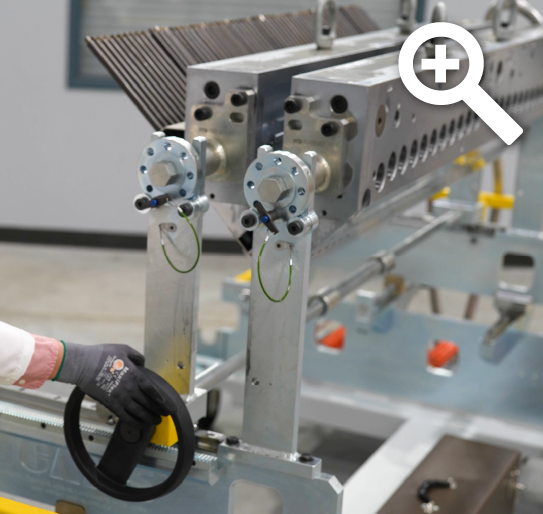

Oversized handwheel drives rack and pinion for open and close motion control during servicing.

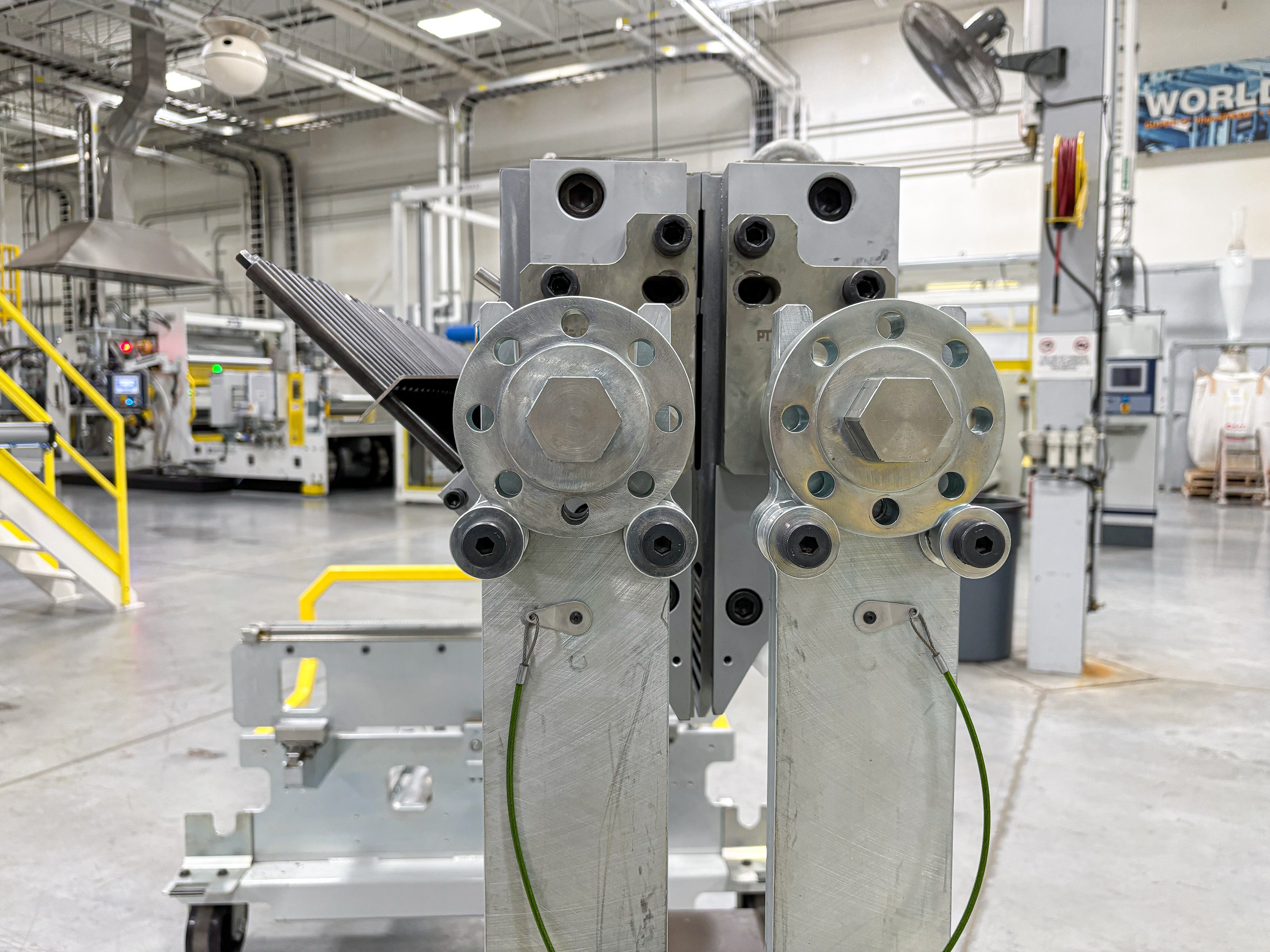

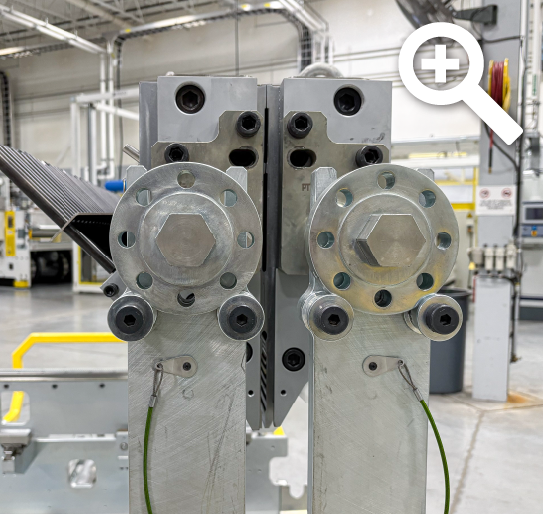

Die trunnions nest in rollers for ease of rotating die halves, while toolless quick-pins secure the desired in-service position.

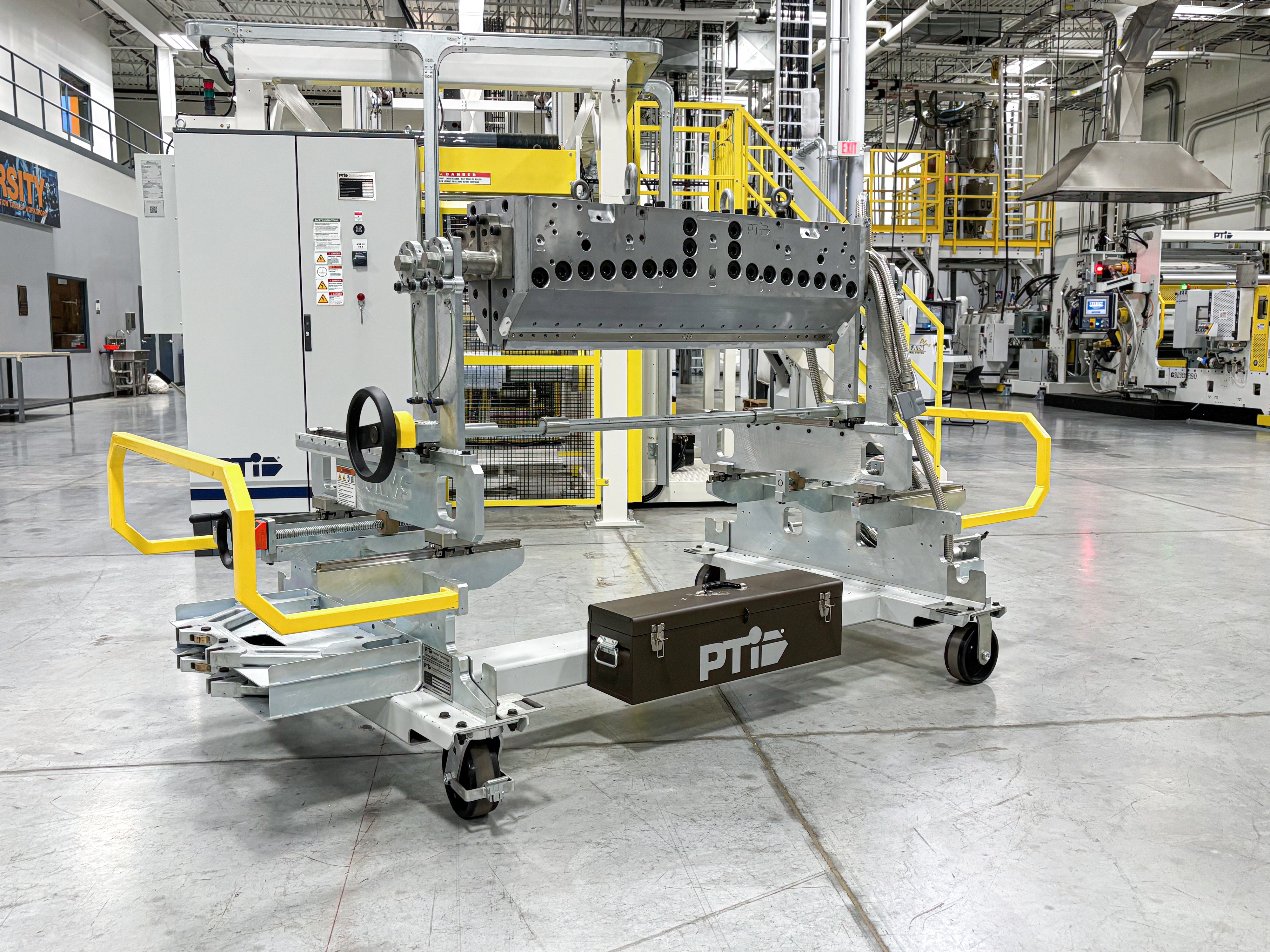

The heavy-duty frame construction on casters offers mobility, safety and accessibility at an ergonomic height that provides the optimal environment for utilization by a single maintenance technician. Paired with a linear traverse rail system and a set of trunnions (conveniently stored within toolbox) the frame easily adjusts to accommodate various service widths.

System construction enhances workplace efficiency and functionality. With minimal effort, a technician can split and rotate a die to the desired position for cleaning, assembly or maintenance.

For those instituting SMED (Single-Minute Exchange of Die) protocols for LEAN production practices, the onboard tool box further enhances workflow efficiency by having all necessary equipment and tools readily available.

Die in OPEN position.

Die in ROTATED position.

Truly efficient maintenance protocols must account for environmental surroundings, procedural consistency, and operator ease and safety. The uCAMS^™ for the inspection and maintenance of cast/sheet dies, along with the latest upgrade option, the uCAMS^™ Plus, for the added inspection of chrome rolls and feed screws, encompasses a complete platform for implementing such protocols.

uCAMS^™ Plus maximizes workplace efficiency three fold by providing capabilities to service cast/film sheet dies, chrome rolls and feed screws in one complete system. Versatile, mobile and functional the uCAMS^™ Plus provides service operators with advantages that can't be achieved with a simple die cart.

Attachment of on-board "A-frames" transforms the system to a chrome roll servicing position.

The Feed Screw Roller assembly enables the servicing station for inspections and maintenance of the extruder feed screw.

Click on the video above to learn about the uCAMS^™ features.

uCAMS^™/ uCAMS^™ Plus 2000S is available as part of the GENESIS^™ Program.  Contact your sales rep for details or inquiries on how uCAMS^™/ uCAMS^™ Plus can enhance your maintenance program.
